Multiview monitoring room version 5

Software based and cost-effective and high-performance tool for IPTV monitoring



The Antik Monitoring Room is a software based and a cost-effective but high performance IPTV monitoring tool, which displays 1 or more streams on submonitors and controls their quality. Every error is displayed immediately in the Log file, where the admin can see when an incident started, ended, in which input it has occured and its description (audio, video, blackout, etc.).

Antiktech

download-iconTry it now! It`s FREE!

Download the Antik Multiviewer trial now!
Test how our IPTV monitoring tool displays and controls the quality of streams.

Try now

Please, register for free trial by filling in the form bellow. Download links will be sent to your e-mail address together with further instructions.




ANTIK Technology

Brief Introduction

  • Software based and cost-effective but high-performance IPTV monitoring tool
  • Supports a powerful mosaic overview for multiple services
  • Supports various alarm detection to ensure QoE and QoS
  • Provides a scalable pricing policy for an easy entry and extension
  • UDP, RTSP protocols in format TS, RTSP, RTMP, HTTP streaming
  • SNMP support

Antiktech

The Antik Multiview monitoring room can receive TSoverIP stream via Ethernet adapter in real time, then decode and display them. It can also monitor audio and video alarms, display monitoring results on monitoring wall.


ANTIK Technology

The Antik Multiview monitoring room is suitable for various types of streaming media IP protocol. It can monitor audio and video alarms, display monitoring results on monitoring wall, which can provide the most effective broadcasting quality guarantee for IPTV/OTT. It supports most of the audio and video coding formats. The Antik Multiview imonitoring room has flexible and convenient layout and configuration function, more suitable for all kinds of application scenes, and it is using GPU decoding technology, greatly improve the decoding efficiency.



KEY FEATURES

  • Dual output resolution up to 1920 x 1080
  • Video decoding: MPEG-1, MPEG-2, MPEG-4, H.264, H.265, AVS/AVS+
  • Audio decoding: MPEG1, MPEG2, MPEG2 AAC, MPEG4 AAC, MPEG4 HE-AAC, AC-3, Dolby 5.1, DRA
  • IP source: UDP, RTSP, RTMP, HTTP, HLS
  • Resolution: SD, HD
  • Detections: Freeze frame , black , color bar , audio loss, video loss, loudness
  • Alarm: ① OSD(on-screen visual alarm )② Alert tone ③Database records ④SNMP traps
  • Log: ①Alarm log storage ② Query by time/ program name /error type
  • Round-robin;
  • Audio waveform spectrum;
  • Layout tool :
    • Provide templates for quick launch
    • Customization template with which customer could draw rectangles flexibly
    • Support both analog and digital clock
    • Support GIF picture and customized text
    • Support main TV wall and secondary TV wall
  • Encode: Support single program encode output and full screen encoding
                   (Video:352*288 、720*576、1280*720 、 1920*1080 Audio:AAC MP3)

Performance

BOM

  • CPU: 17-7700, 3.60GHz
  • Memory: 16G
  • Ethernet: gigaE NIC port x 2
  • Output: HDMI*2
  • OS: Windows10 Enterprise X64
  • CPU: 60% - 70%

Service Type MPEG2
SD
MPEG2
HD
H.264
SD
H.264
HD
H.265
4K
Max. amount 36 25 50 30 1 (10bit)
2 (8bit)
Source counted 3.5 Mbps
720*576
18 Mbps
1920*1080
2 Mbps
720*576
8Mbps
1920*1080
30 Mbps
3840*2160


Source counted as:

  • MPEG-2 SD:        3.5 Mbps          720*576
  • MPEG-2 HD:        18 Mbps        1920*1080
  • H.264 SH               2 Mbps           720*576
  • H.264 HD:             8 Mbps         1920*1080
  • H.265 4K             30 Mbps         3840*2160


OTHER FEATURES

  • Web based control
  • Layout tool provide templates for quick launch, also customization template with which customer could draw rectangles flexibly
  • Support both Analog and digital Clock
  • Support GIF picture and customized TEXT
  • Support main TV wall and secondary TV wall
  • Support round-robin
  • Multiple rotating mosaic screens

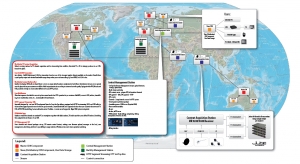

ANTIK Technology     See how all IPTV servers correlate
