STB Nano 3 4K HDR IP+DVB set-top box

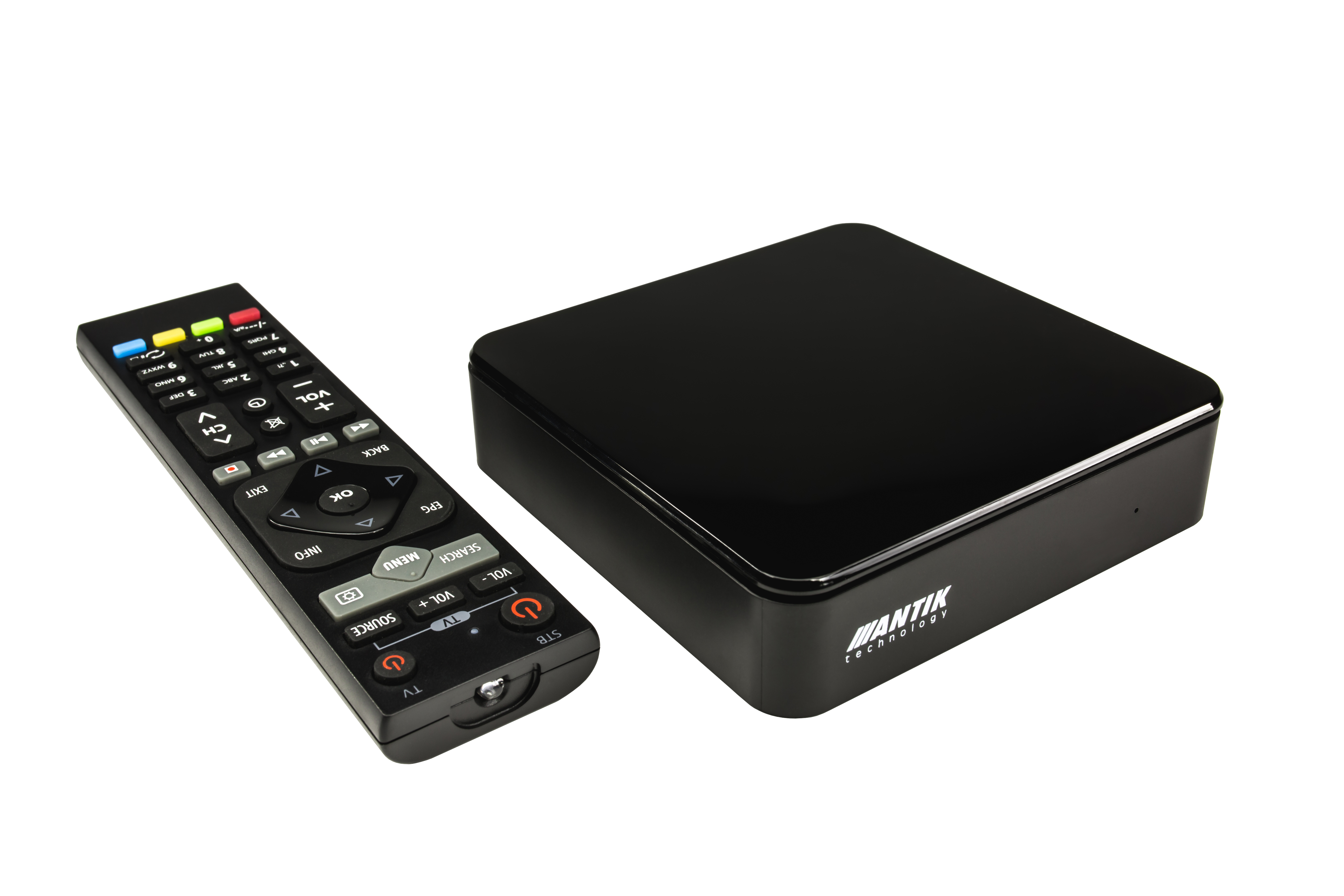

Antik Nano 3

Hybrid/OTT IP+DVB Set-top Box

This ultra cost-effective OTT/ IPTV box combin es a compact design with high performance and low power consumption.


http://www.antiktech.com/photos/original/001_time_f72de64adc0918624eeb00b49a583d04.jpg
KEY FEATURES

 4K HDR or dual Full HD decoding
 CPU HiSilicon Hi3798MV200
 GPU Mali-450
 Wi-Fi 802.11 bgn Access Point (optional)
 Modem
 Bluetooth 4.2
 Z-Wave/ Lorawan GW
 1.71" OLED Display


SPECIFICATIONS
Video:
  •  H.265/HEVC (10-bit)
  •  H.264/AVC
  •  VP9 (10-bit), VP6/VP8
  •  MPEG-1/2/4
  •  VC-1/WMV9
  •  Real 8/9/10


Audio:
  •  AAC (HE-AAC v2 Profile) - optional
  •  Dolby Digital AC-3) - optional
  •  MPEG-1/2 (layer I/II)
  •  MP3
  •  FLAC, Vorbis
Streaming:
  •  MPEG-2 transport stream
  •  Multicast or Unicast
  •  TS over UDP
  •  TS over RTP
  •  HTTP streaming
  •  RTSP (with trick play support) for VoD
  •  Teletext and subtitles
  •  IGMP v2 & v3
  •  HLS
Inputs/Outputs:
  •  HDMI 2.0a
  •  AV output (CVBS, L+R audio)
  •  TOSLINK (S/PDIF optical audio interface)
  •  1 x RJ45 (Ethernet 100 BaseTx)/4 x RJ45 (1000 BaseT)
  •  1 x USB 3.0 + 1 x USB 2.0
  •  external IR sensor
  •  antenna RF input (only on selected models)
Accessories (optional):
  •  IR2 Extender cable
  •  AV Cable adaptor
  •  RCA/SCART cable
  •  Ethernet Cable
  •  Full size/Compact Keyboard
  •  Bluetooth Remote control
  •  WiFi Adapter








Technical Specifications:
  •  Dimensions 115 mm x 115 mm x 32 mm (without packaging)
  •  Power consumption 6W
  •  Power Input 12V/1A DC
  •  Power Adaptor 90-250V/50-60 Hz AC
  •  Operating Temperatures 0°C to 45°C
  •  Operating Humidity 8%-95% (non-condensing)
CAS/DRM:
  •  AntikCrypt
  •  Conax
  •  Widevine
Software Integration:
  •  Operating system Linux 4.4
  •  Copy Protection HDCP 2.2
  •  Ekioh SVG integrated
  • Android 9 (optional)

Applications:
  •  Telco IPTV
  •  Hotel IPTV
  •  OTT IPTV
  •  DTH
  •  Digital Signage
Hardware:
  •  CPU: HiSilicon Hi3798MV200 (4 x ARM cortex-A53)
  •  GPU: ARM Mali-450
  •  DRAM: 1GB DDR4/ 2 GB (Android)
  •  Flash: 8GB eMMC
  •  Wi-Fi: 802.11 b/g/n + Bluetooth 4.2
  •  868 MHz SmartHome gateway (optional)
  •  DVB-S/S2/T/T2/C tuner (optional)

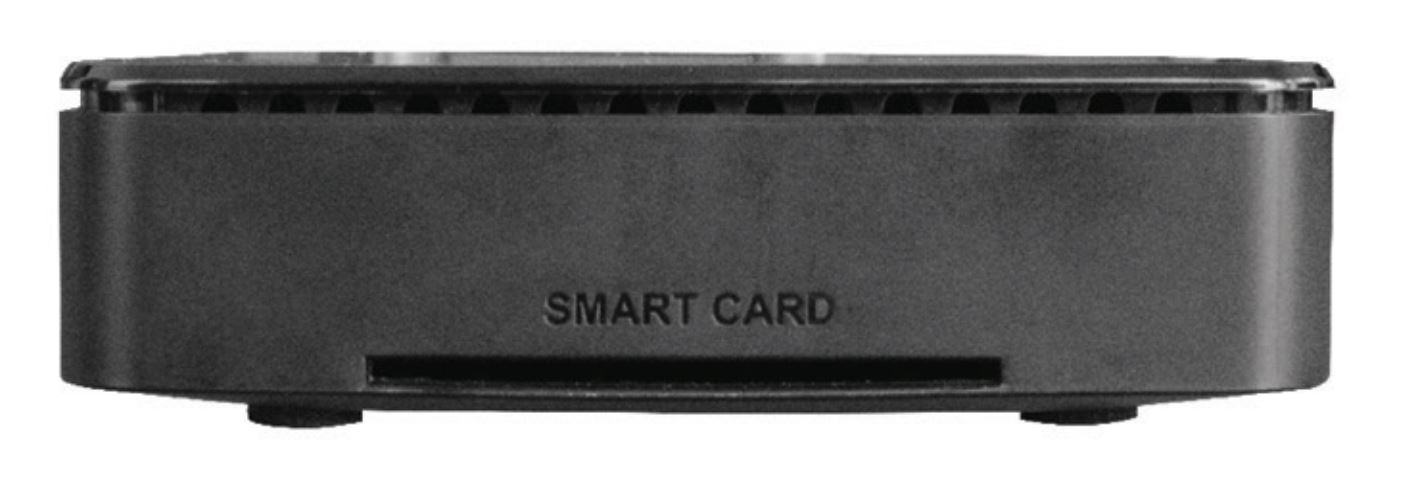

  •  CAS Card reader slot (optional)
  •  Modem
Middleware:
  •  ANTIK MaxIM Middleware 2.0

Nano 3 Models

ANTIK Technology

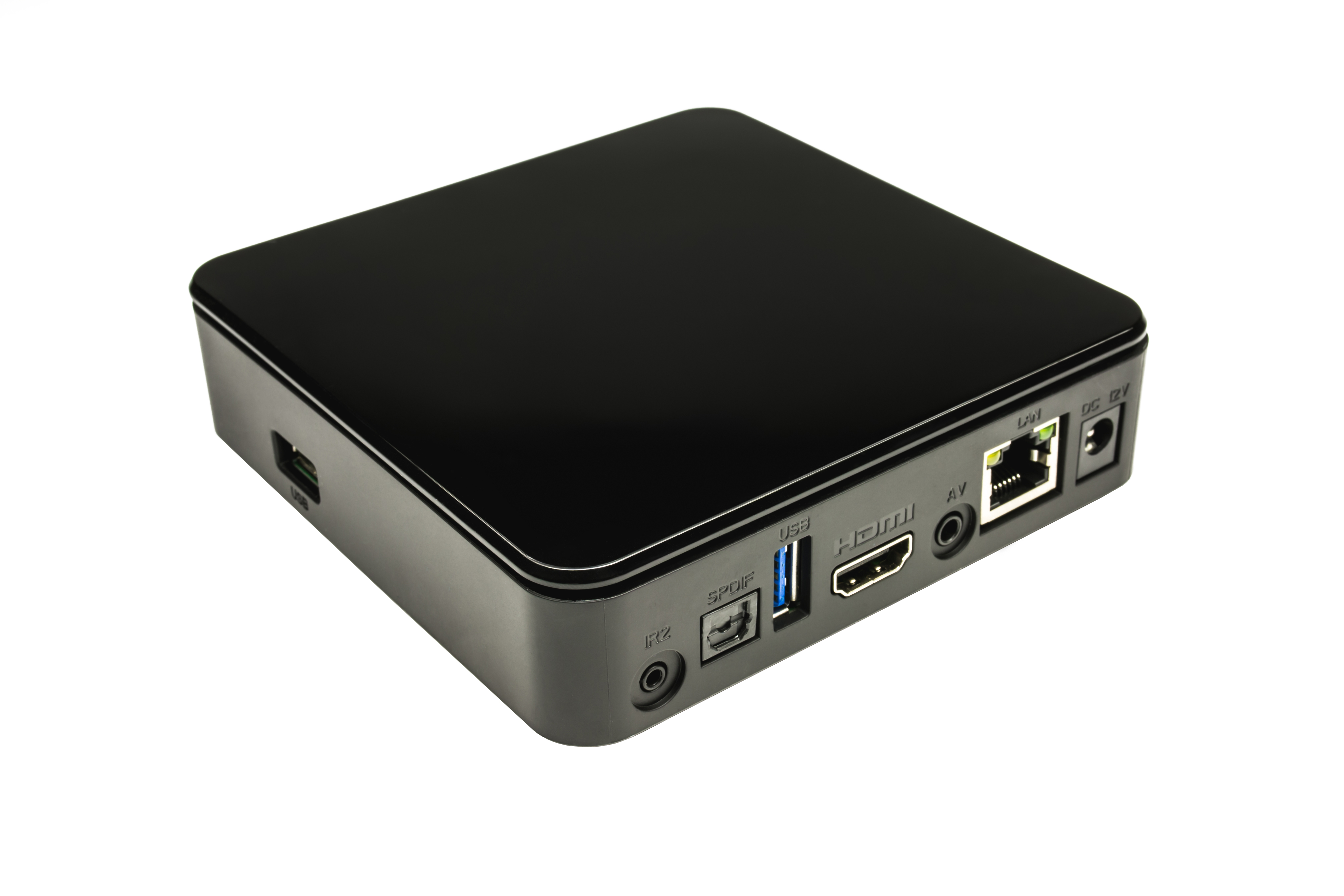

Nano 3 Giga (4x 1000 BaseT)

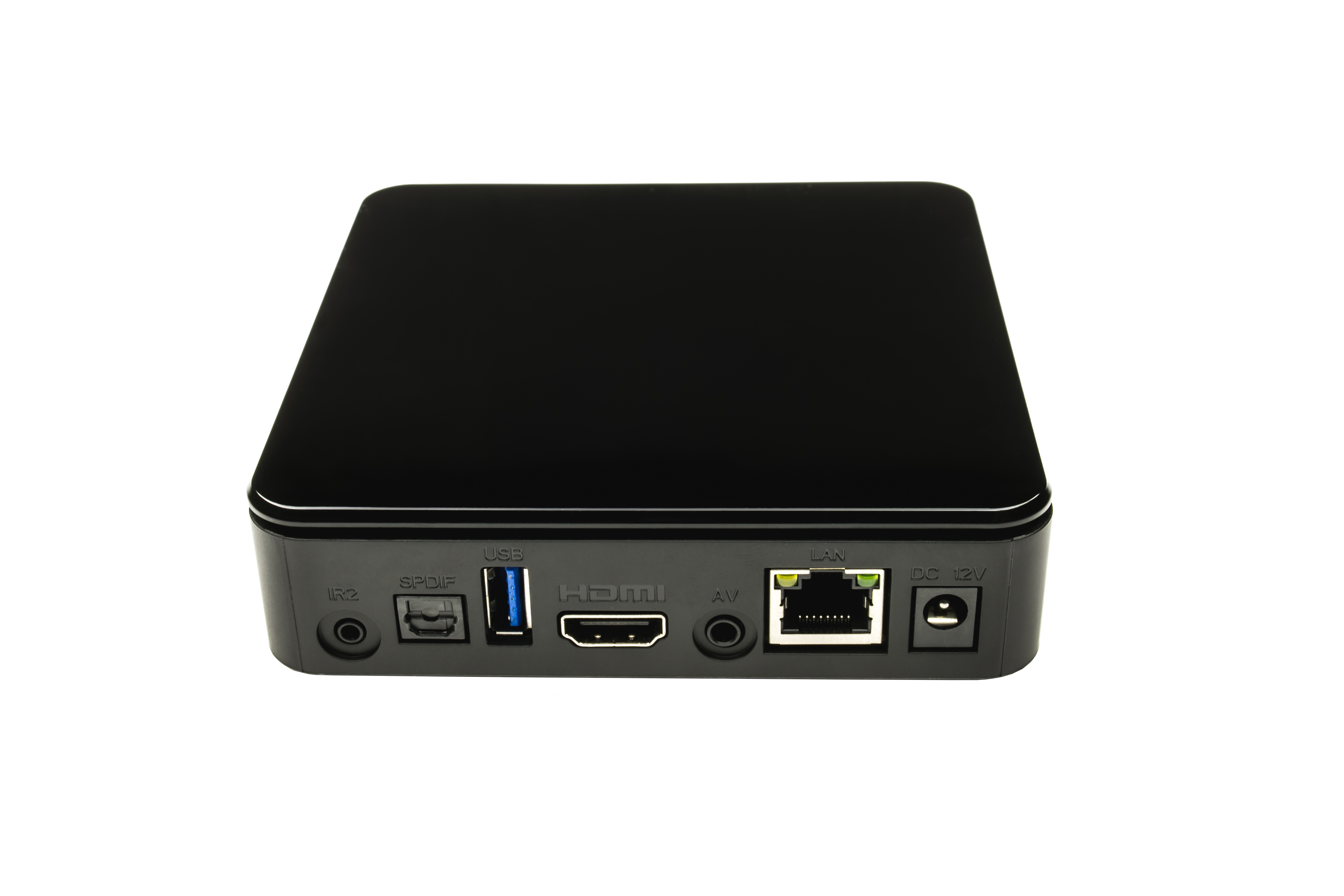

Nano 3 OTT (1x 100 BaseTX)


ANTIK Technology

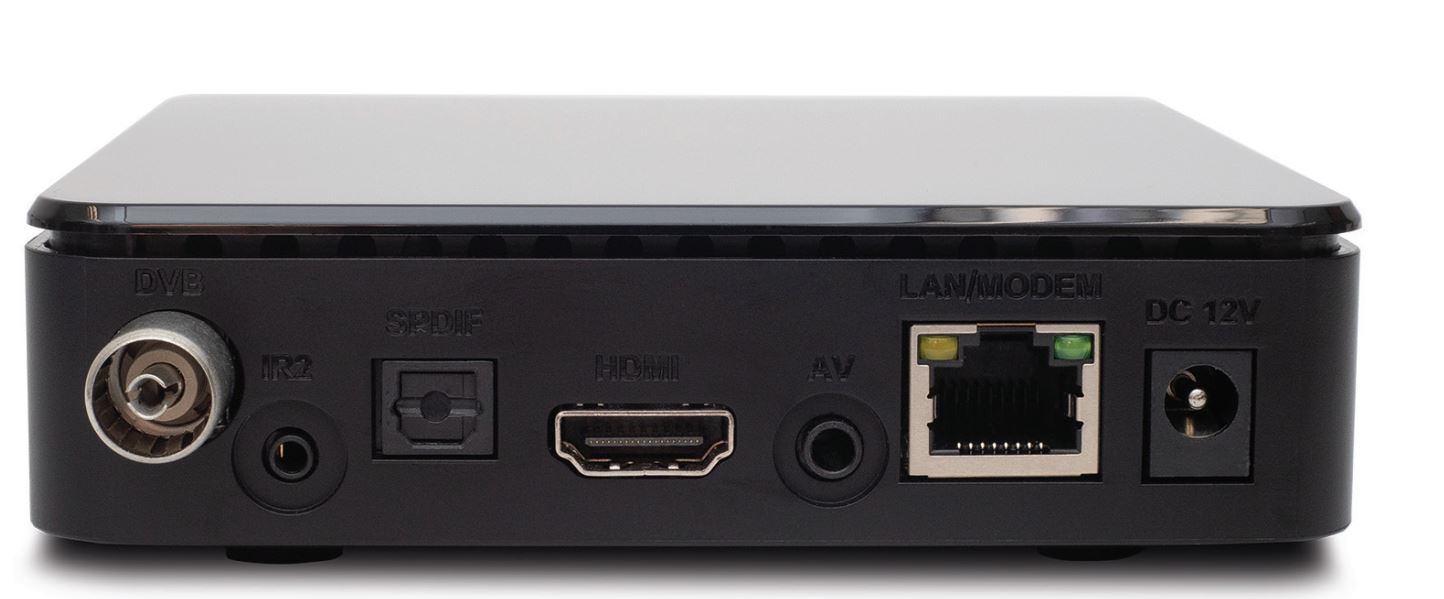

Nano 3T (DVB-T2+IP)


ANTIK Technology

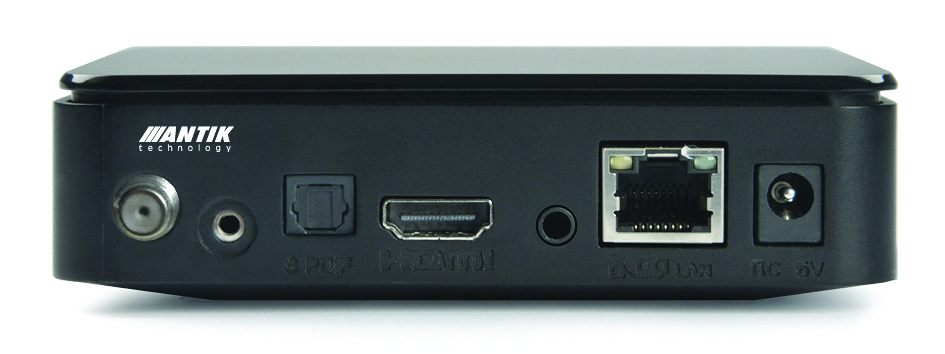

Nano 3S (DVB-S2+IP)/ Nano 3C (DVB-C+IP)


Datasheet: Antik Nano 3
