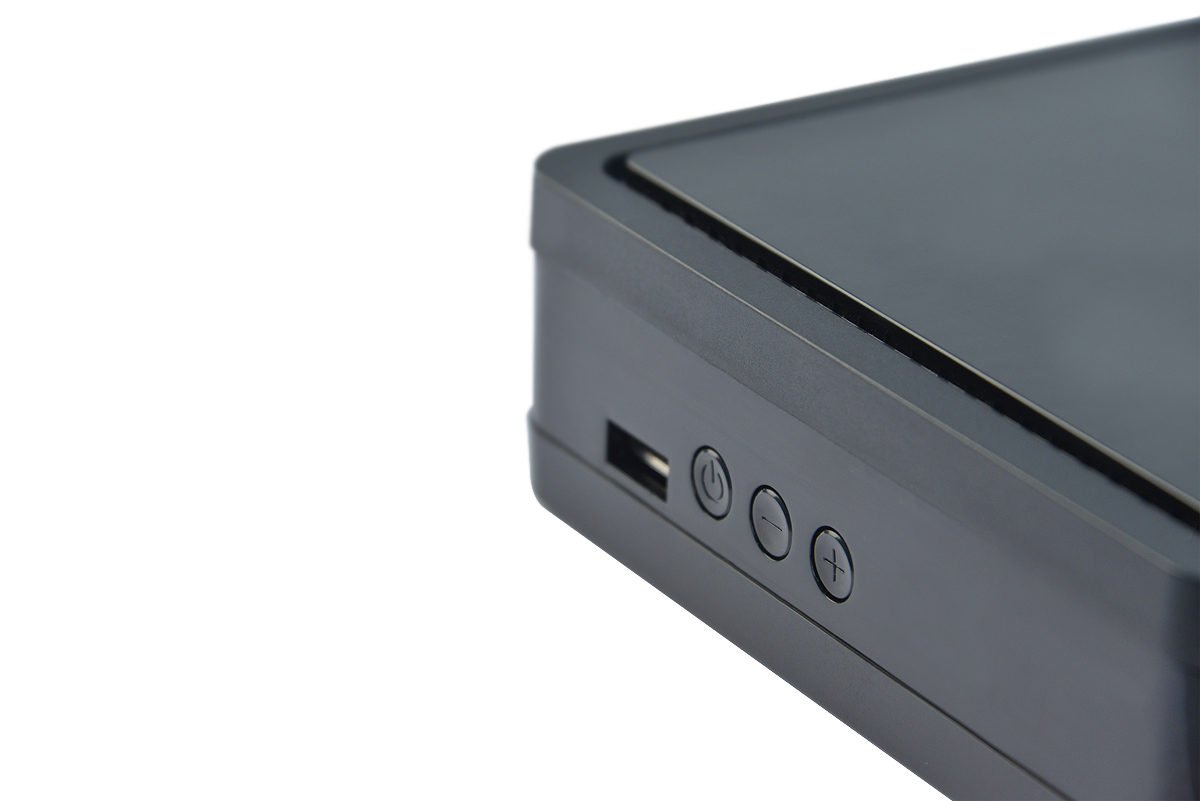

Antik Mini 3- IPTV or Hybrid IPTV +DVB Set-top Box
New ANTIK Mini 3 quad-core Linux / Android set-top box with Hi3798C V200 central processing unit has a great features to satisfy highest demands for video decoding, power consumption, price and performance. It is a 4K HDR or dual full HD DVB & IPTV set-top box with VP9 video decoding at 3840 x 2160 resolution at 60fps. Fully integrated with Antik MaxIM management system.
- Enhanced Host CPU performance (15000DMIPS)
- Hybrid device with IP + DVB tuner (optional)
- L2 managed switch up to 1Gbps
- 4K HDR or dual Full HD decoding
- Decoding and display capability compatible with HDMI 2.0a
- Wifi 802.11 ac Access Point (optional)
- Wake on HDMI CEC, IR/BT RC input
- Smart Home HUB (Z-Wave)
IP+ DVB Tuners (OPTIONAL)
It is possible to have embedded internal Wi-Fi antenna (client mode) and optional Smart Home solution supported by external antenna. Wi-Fi serves as alternate internet connection method in OTT mode or in closed network, it can serve as second STB network adapter to connect to home network resources (DLNA server) while wired ethernet is used to deliver multicast to the box. Wi-Fi functionality can optionally serve as Wi-Fi router as well.
DVB-S2+IP / ETH 1
DVB-T + IP / ETH 1
Pure IP / ETH 4
INPUTS / OUTPUTS
- DVB-C/T/S/S2 Tuner Input (OPTIONAL)
- HDMI 2.0a
- TOSLINK Digital Audio interface
- 1x USB 3.0 + 1x USB 2.0 (optional)
- 1x or 4x RJ45 (Ethernet 10/100/1000baseTx)
- 868 MHz transceiver for Smar Home
- WiFi client embedded- 802.11a/b/g/n/ac up to 867mbps (2T2R)- Optional
- Infrared Receiver
- Bluetooth 4.2- Optional
H.265 (Main/Main 10 profile@level 5.1)
MPEG-2 transport stream
Remote control IR, Blietooth 4.2
MPEG-1 (layer I/II)
CPU & Memory:
CPU quad-core ARM Cortex-A53, 15000 DMIPS
CAS / Scrambling / DRM:
Operating system Linux 3.18/ Android 7.0
ANTIK MaxIM Middleware 2.0 (optional)
Width x depth x height 183 x 137 x 47mm
